AFTER COOLER
ENERGY SAVING
AFTER COOLER
ENERGY SAVING
Air-cooled-type
| Highest Inlet Temperature (℃) | 95 | ||||||
| Ambient Temperature (℃) | 1.7~45 | ||||||
| Working Pressure (kgf/㎠) | 1.5~35 | ||||||
| Power Supply | AC220V, 60Hz, 3 | ||||||
| Power Consumption (kw) | 0.1 | 0.1 | 0.1 | 0.2 | |||
| Fan Diameter (mm) | 300 | 350 | 350 | 400 | |||
| Motor (H) | 1/4 | 1/4 | 1/4 | 1/4X2 | |||
| Product Weight(kg) | 27 | 37 | 67 | 100 | |||
| Port Size (IN, OUT) | 1 | 1/2" | 2" | 1 1/2 | |||
| Application Compressor (HP) | 20 | 30 | 50 | 75 | |||
| Ambient Temp | Pressure | Inlet Temperature | Model Number | SC-1C | SC-2C | SC-3C | SC-4C |
| 20℃ | 6~8(kgf/㎠) | 95℃/70℃ | Working Volume Flow Rate (N㎥/min) |
2.5/3.2 | 4.0/5.1 | 7.0/8.2 | 10.0/12.5 |

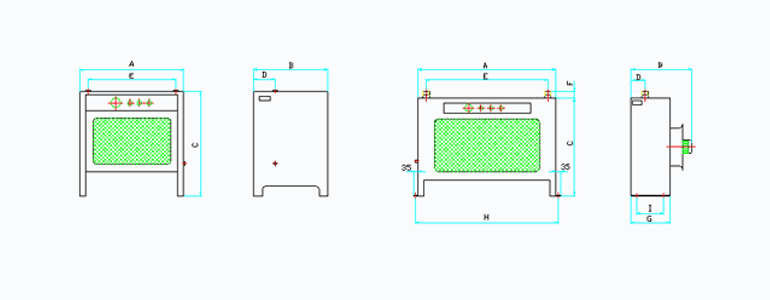

Dimension Table
| Model No. | A | B | C | D | E | F | G | H | I |
| SC-1C | 575 | 300 | 585 | 65 | 480 | 5 | - | - | - |
| SC-2C | 738 | 300 | 695 | 65 | 595 | 5 | - | - | - |
| SC-3C | 1070 | 385 | 765 | 120 | 945 | 10 | - | - | - |
| SC-4C | 1270 | 460 | 840 | 120 | 1180 | 10 | 305 | 1310 | 205 |

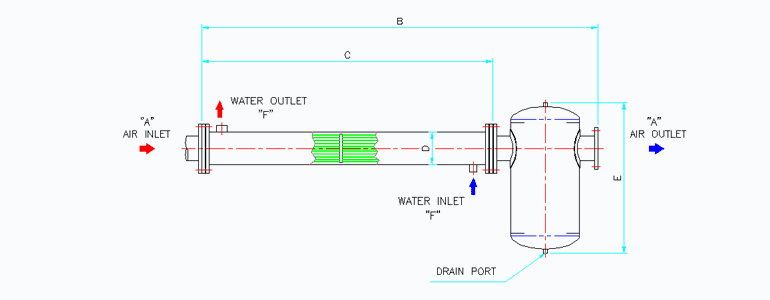

Water-cooled-type
Dimension Table
| Model No. | Air Port Size A |
B | C | D | Coolant Port Size E |
F |
| SC-1W | 50 (2B) | 1470 | 1300 | 80(3B) | 960 | 3/4 B |
| SC-2W | 50 (2B) | 1370 | 1200 | 100(4B) | 960 | 3/4 B |
| SC-3W | 80 (3B) | 1950 | 1300 | 125(5B) | 1295 | 1 1/4 B |
| SC-4W | 80 (3B) | 2150 | 1500 | 125(5B) | 1295 | 1 1/4 B |
| SC-5W | 80 (3B) | 2650 | 2000 | 125(5B) | 1295 | 1 1/4 B |
| SC-6W | 100 (4B) | 3200 | 2500 | 125(5B) | 1340 | 1 1/4 B |
| SC-7W | 100 (4B) | 3700 | 3000 | 125(5B) | 1340 | 1 1/4 B |
| SC-8W | 150 (6B) | 3350 | 2500 | 150(6B) | 1605 | 1 1/4 B |
| SC-9W | 125 (5B) | 3700 | 3000 | 150(6B) | 1340 | 1 1/4 B |
| SC-10W | 150 (6B) | 3350 | 2500 | 200(8B) | 1605 | 1 1/4 B |
| SC-11W | 150 (6B) | 3850 | 3000 | 200(8B) | 1605 | 1 1/2 B |
| SC-12W | 200 (8B) | 3500 | 2500 | 250(10B) | 1725 | 1 1/2 B |
| SC-13W | 250 (10B) | 4400 | 3000 | 350(14B) | 2165 | 2" |
| SC-14W | 300 (12B) | 4400 | 3000 | 400(16B) | 2165 | 2" |
