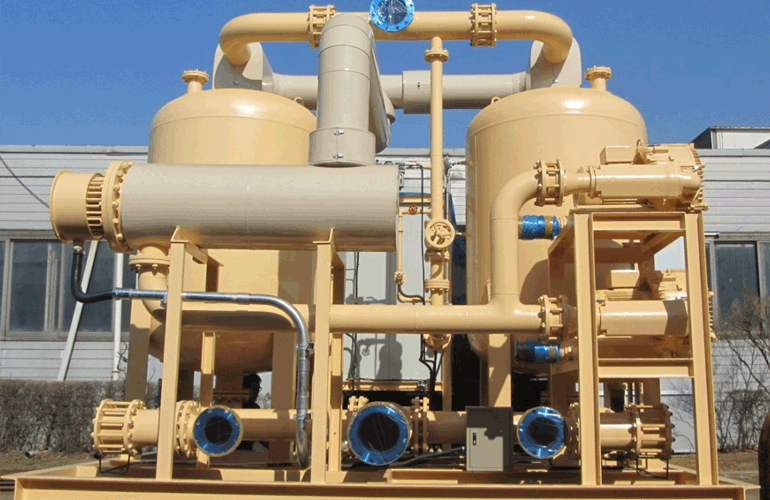

DBP Series

Blower-type
desiccant air dryer

DBP Series can operate at below -40°C of dew point temperature under operating pressure,
10.7N㎥/min of processing capacity and 10 kgf/㎠ of operating pressure. We can produce equipment larger than the above standard model and it is also possible to have them replaced or combined.

DBP Series

Product Features

Based on basic temperature sensor system and optional moisture sensor system,energy usage is appropriately adjusted depending on the load.
Energy requirement is minimized by adopting insulation tower, piping, high efficiency heater and air blower.
Reduces energy loss by minimizing regeneration air
Dew point is guaranteed even at 100% load cycle.
PLC control is utilized to monitor all dangerous operating conditions, display operation status and malfunction conditions on the display or touch screen panel, and control the operating procedures of valves, heaters and blowers.

Model Description

Maximum Inlet Temperature	55℃
Ambient Temperature	5~49℃
Working Pressure	1.5~9.9kgf/㎠
Power Supply	220/440V, 50/60Hz, 3￠

MODEL	Inlet Temp. : 38°C, Inlet Pressure: 7 ㎏f/㎠, Dew Point under pressure: -40°C and below.
MODEL	Treating Flow Rate (㎟/MIN)	Max. Heater Capacity (KWH)	Avg. Power Consumption (KWH)	BLOWER Volume (HP)	Activated Alumina Gel Charged volume (kgs/lower)
DBP-370	10.7	8.6	5.6	3(V type)	146
DBP-450	13	10.5	9.4	5(V type)	177
DBP-590	17	14	12.2	5(V type)	232
DBP-750	22	17	15.7	5(V type)	296
DBP-930	27	22	23.5	7.5(V type)	367
DBP-1130	33	26	25.5	7.5(V type)	428
DBP-1350	39	32	28.2	10(V type)	534
DBP-1750	51	41.5	36.3	7.5	691
DBP-2100	61	49.5	43.8	75	829
DBP-3000	87	71	62.5	10	1185
DBP-4100	119	97	85	15	1619
DBP-5200	150	123	108.2	20	2054

※ Possible to manufacture models with operating pressure larger than 10 ㎏f/㎠.
※ Possible to manufacture models larger than standard conditions mentioned above.
※ Possible to replace or combine.

Conversion Coefficient

Table1- Conversion Coefficient by Inlet Pressure

Inlet Pressure (kgf/㎤)	2	3	4	5	6	7	8	9	10
Conversion Coefficient	0.38	0.5	0.63	0.75	0.88	1	1.12	1.25	1.37

Table2- Conversion Coefficient by Inlet Temperature

Inlet Temperature (℃)	25	30	35	38	40	43	45	50	55
Conversion Coefficient	2.0	1.52	1.72	1	0.9	0.78	0.7	0.56	0.44

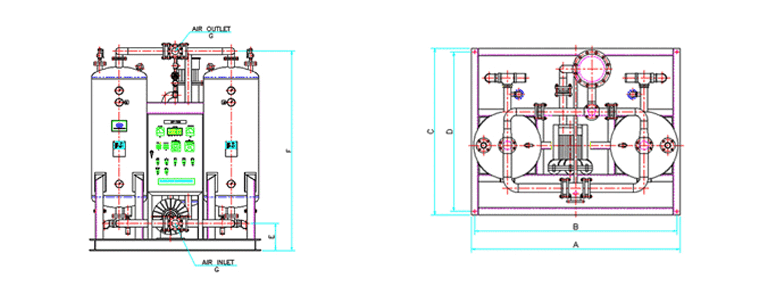

Product Size

MODEL	A	B	C	D	E	F	G
DBP-370	1600	1500	1300	1200	250	2350	PT2"
DBP-450	1700	1600	1300	1200	250	2375	PT2"
DBP-590	1900	1800	1350	1250	280	2395	2.1/2"F
DBP-750	2000	1900	1400	1300	280	2415	2.1/2"F
DBP-930	2100	2000	1500	1400	280	2480	3"F
DBP-1130	2200	2100	1550	1450	300	2495	3"F
DBP-1350	2200	2130	1750	1680	350	2565	3"F
DBP-1750	2400	2330	1800	1730	350	2640	4"F
DBP-2100	2600	2530	1900	1830	350	2700	4"F
DBP-3000	3500	3430	2200	2130	365	2990	6"F
DBP-3300	3600	3530	2250	2180	370	3045	6"F
DBP-4100	3800	3730	2250	2180	400	3000	6"F
DBP-5200	4200	4130	2400	2330	400	3285	8"F

Model Selection and
Calculating Working Volume Flow Rate

MODEL : DBP-750

What’s the working volume flow rate when inlet temperature is 40°C with inlet pressure of 5kgf/㎠ ?
Standard working volume flow rate of DBP-750: 22 N ㎥/min
Conversion Coefficient for 40°C of temperature: 0.9
Conversion Coefficient for 5kgf/㎠ of pressure: 0.75
* Working Volume Flow Rate = 22 N㎥/min x 0.9 x 0.75 = 14.85 N ㎥/min
Which model should be used when working volume flow rate is 35 N㎥/min with 45℃
of inlet temperature and 8 kgf/㎠ of inlet pressure ?
Adjusted working volume flow rate under standard Condition.
(38℃ of inlet temperature, 7kgf/㎠ of inlet pressure)
= 35 N ㎥/min / 0.7 (Conversion Coefficient for temperature) / 1.12 (Conversion Coefficient for pressure)
= 44.64 (N ㎥/min)
* DBP-1750 on the working volume flow rate index by model.
