    • DRAIN TRAP
    ENERGY SAVING
    Removing condensate water from compressed air system is imperative and if such condensate water is not discharged properly, those carried over from refrigeration-type dryer or after-coolers can cause serious problems and damage to the downstream equipment. Seyang Corporation’s drain trap can perfectly resolve such issue.

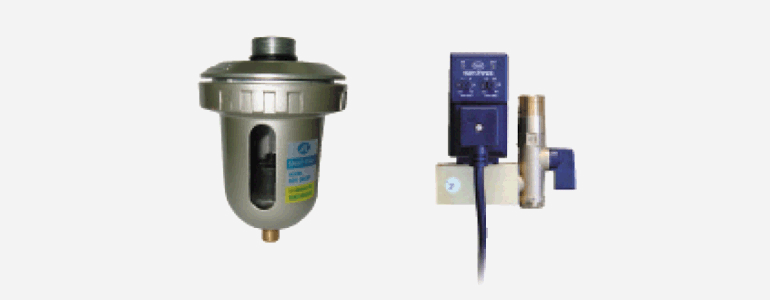

    Drain Trap
    Air-cooled-type
      AUTO DRAIN POWER AUTO DRAIN ELECTRIC AUTO DRAIN
    MODEL No. SDT-503 SDT-120 SDT-250, 660 SDT-520
    Shape
       WORKING
    PRESSURE
    (kgf/㎠)    		 1.5~9.9 0.1~9.9 2.5~9.9 0~17
       WORKING
    TEMP.(℃)    		 2~60 2~75 2~75 2~60
    Discharge Method FLOAT FLOAT 15A BALL VALVE SOLENOID VALVE
    Max. Discharge
    Flow Rate
    (l/hr)    		 20 120 250, 660 500
    Features - Excellent Operational Reliability.
    - No air consumption.
    - Excellent Float position.
    - Simple Maintenance.
    - Power Connection Unnecessary.
    - Easy to install.
    - Visible Operation Status.    		  - Large Outlet Size.
    - Excellent Operational Reliability.
    - Built-in By-pass Function.
    - Very Little Air Consumption.
    - Simple Maintenance.
    - Power Connection Unnecessary.
    - Processes Large Volumes of Condensate.
    - Installation of Heater to Protect Freezing Possible.
    		 - Control by High-performance Timer.
    - Cycle Time Guaranteed.
    - Open Time: 0.5~10sec
    - Close Time: 0.5~45min
    - Test Button Attached.
    - LED Lamp indicating Operation Status Attached.
    - Ball Valve and Strainer Attached.
    - Improved Reliability and Minimized Air Consumption.
    Port Size PT 1/2 PT 1/2 PT 1/8, 1/4, 3/8, 1/2
    Application - Air Compressor
    - Inter Cooler
    - After Cooler
    - Separator
    - Receive Tank
    - Air Filter
    - Refrigerated Air Dryer
    - Possible to install in any other piping where condensate accumulates.
