    • RECEIVER TANK
    Non-heated adsorption type air dryer
    RECEIVER TANK Non-heated adsorption type air dryer.
    Receiver Tank

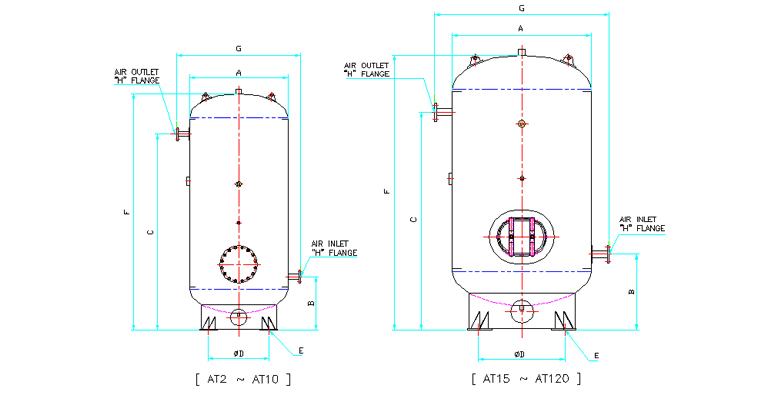

    Product Size
    Model No. Capacity
    (㎥)    		 A B C D E F G H
       AT2 0.2 ￠508 400 1200 ￠460 3-￠15 1405 720 25A
       AT5 0.5 ￠784 550 1200 ￠680 3-￠15 1560 1080 40A
       AT6 0.6 ￠784 550 1300 ￠680 3-￠15 1660 1080 40A
       AT10 1.0 ￠866 600 1760 ￠750 3-￠15 2130 1160 50A
       AT15 1.5 ￠1058 580 1744 ￠1020 4-￠15 2160 1360 50A
       AT20 2.0 ￠1200 800 1770 ￠1020 4-￠15 2310 1500 80A
       AT30 3.0 ￠1200 800 2690 ￠1020 4-￠19 3230 1500 100A
       AT40 4.0 ￠1352 900 2790 ￠1140 4-￠19 3435 1660 150A
       AT50 5.0 ￠1480 950 2200 ￠1320 4-￠19 3530 1800 150A
       AT60 6.0 ￠1478 970 2808 ￠1420 4-￠27 4150 1778 150A
       AT70 7.0 ￠1748 1000 2890 ￠1510 4-￠27 3635 2100 150A
       AT80 8.0 ￠1860 1030 2920 ￠1720 4-￠27 3695 2200 150A
       AT90 9.0 ￠1970 1050 2940 ￠1840 4-￠27 3745 2320 150A
       AT100 10.0 ￠1880 1100 3485 ￠1610 4-￠27 4340 2178 200A
       AT120 12.0 ￠1960 1100 3600 ￠1900 4-￠27 4660 2280 200A
